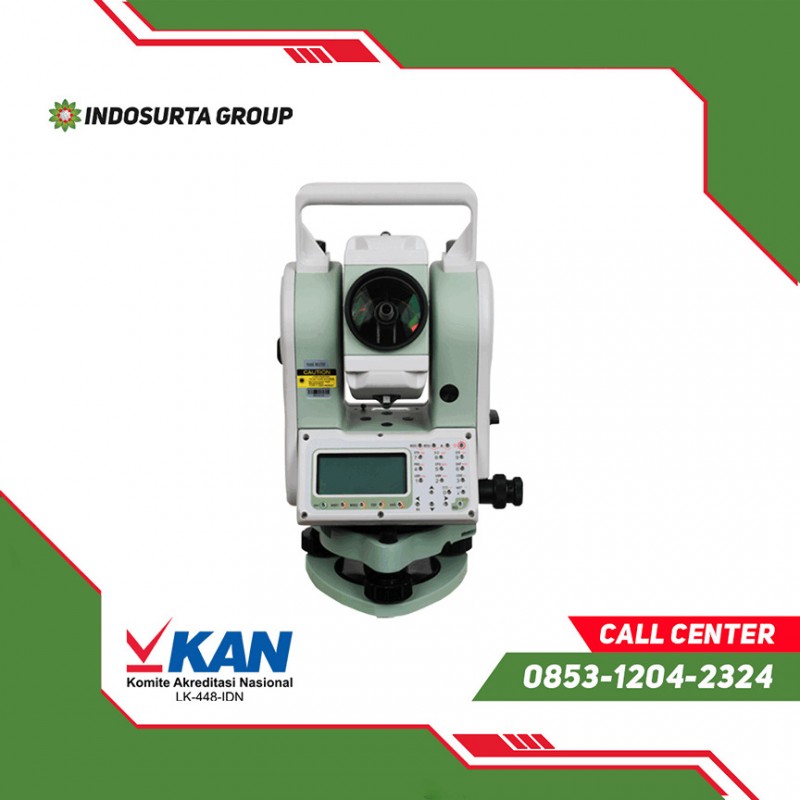

Total Station Hi-Target HTS-360R adalah total station yang dirancang untuk memberikan akurasi tinggi dalam pengukuran sudut dan jarak. Alat ini memiliki fitur layar berwarna, desain kompak, dan kemampuan pengukuran yang presisi untuk aplikasi survei, konstruksi, dan pemetaan.
Dilengkapi dengan teknologi komunikasi nirkabel, HTS-360R mempermudah transfer data dan pengolahan informasi secara efisien. Dengan daya tahan baterai yang lama dan kemampuan pengukuran jarak hingga beberapa kilometer, total station ini ideal untuk penggunaan di lapangan.
Spesifikasi Total Station Hi-Target HTS-360R
Angle Measurement
- Measurement Method : Absolute Encoding
- Minimum Readout : 1"/ 5"/ 10" (0.3mgon/1.5mgon/3mgon) optional
- Accuracy : 2
Distance Measurement (HTS-360R with Reflectorless)
- Reflectorless Range: 600m (1,968 ft.)
- Single Prism: >7500m (24,606 ft.)
- Accuracy : 3mm + 2ppm
- Measuring Time: 1.5s
Telescope
- Magnification : 30X
- Field of View : 1°30' (2.7m at 100m)
- Minimum Focusing Distance : 1.2m
- Reticle : Illuminated
Compensator
- System : Dual - axis
- Working Range : ±3'
- Setting Accuracy : 1"
Communication
- Bluetooth
- Interface : Standard RS232, SD card, USB, mini-B
- Internal Data Memory : Approx. 20,000 Points, default 8G USB Pen drive
- Data Format : ASCII
Operation
- Operation system : Real-time Operating System
- Display : High Resolution backlight black and white display with;
- Contrast adjustment/ Graphics: 192 x 96 px
Laser Plummet
- Type : Laser point, 4 brightness levels adjustment / Optical Plummet (optional)
- Centering Accuracy : 1 mm at 1.5m instrument height
Power Supply
- Battery Type : Rechargeable Li-ion battery
- Voltage / Capacity : ZBA-400 : 7.4V (DC) / 3400mAh
- Operating Time With ZBA-400 : Optimal 16 hours (Continuous angle measurement every 30 seconds)
- Measuring Times : Approx. 12000 times
Physical
- Weight (without battery) : Approx. 3.7kg (8.16lb.)
- Size: 300mm x 150mm x 150mm (HxWxD)
Environmental
- Meteorological parameter modification: Manually (T-P sensor is optional)
- Operating Temperature: -20°C ~+ 50°C (-4 °F to +122°F)
- Storage Temperature: -25°C ~+ 70°C (-13°F to +158°F)
- Dust&Water Proof (IEC60529 Standard)/ Humidity: IP66, 95%, non-condensing
Kelengkapan
- 1 Unit Total Station Hi-Target HTS-360R
- 1x Battery
- 1x Charger Battery
- 1x Prisma Single
- 1x Prisma Polygon
- 1x Pole stik
- 2x Alumunium Tripod
Layanan purna jual
- Garansi servis dan kalibrasi 1 tahun
- Gratis training alat
