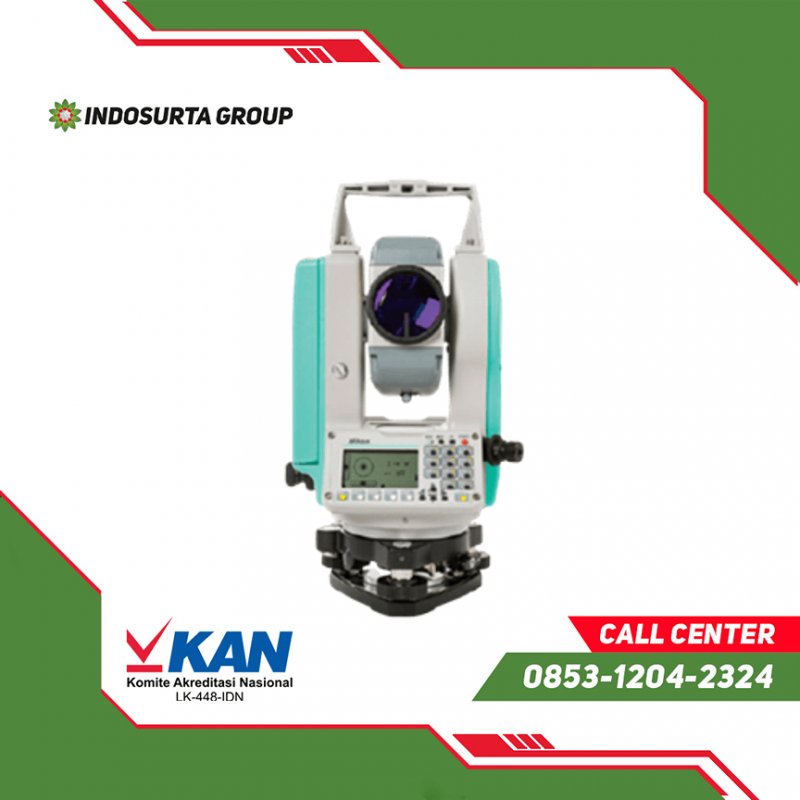

Total Station Nikon N2 adalah alat ukur elektronik yang dirancang untuk keperluan survei dan pemetaan. Dengan fitur pengukuran sudut dan jarak yang sangat akurat, Nikon N2 menggunakan teknologi EDM (Electronic Distance Measurement) untuk memberikan hasil yang presisi.
Spesifikasi Total Station Nikon N2
Distance Measurement
-
- - Range with Nikon specified prisms
- - With reflector sheet (5 × 5 cm) : 1.5 m to 300 m (4.9 ft to 984 ft)
- - With single prism 6.25 cm (2.5 in) : 4,000 m (13,123 ft)
- KGC (18%)
- - Good¹ : 400 m (1312 ft)
- - Normal² : 300 m (984 ft)
- - Difficult³ : 235 m (771 ft)
- KGC (90%)
- - Good¹ : 600 m (1968 ft)
- - Normal² : 500 m (1640 ft)
- - Difficult³ : 250 m (820 ft)
- Accuracy
- - Prism : ±(2+2 ppm × D) mm
- - Reflector sheet : ±(3+2 ppm × D) mm
- - Reflectorless : ±(3+2 ppm × D) mm
- Measuring interval
- - Prism mode
- - Precise mode : 1.1 sec.
- - Normal mode : 0.6 sec.
- - Fast mode : 0.4 sec.
- Reflectorless mode (Nikon N)
- - Precise mode : 1.1 sec.
- - Normal mode : 0.6 sec.
- - Fast mode : 0.4 sec.
- Least count
- - Precise mode : 0.1 mm (0.0002 ft)
- - Normal mode : 1 mm (0.002 ft)
- Angle Measurement
- - Accuracy8 (horizontal and vertical) : 2“ (0.6 mgon), or 5“ (1.5 mgon)
- - Reading system : Photoelectric detection by incremental encoder
- - Circle diameter : 88 mm (3.46 in)
- - Horizontal angle : 2”:Diametrical, 5”:Single
- - Vertical angle : Single
- - Minimum increment : 1/5/10” (0.2/1/2 mgon)
- Telescope
- - Tube length : 125 mm (4.9 in)
- - Image : Erect
- - Magnification : 30× (18x/36x with optional eyepieces)
- - Effective diameter of objective : 45 mm (1.77in)
- - Field of view : 1°20‘
- - Resolving power : 3”
- - Minimum focusing distance : 1.5 m (4.9 ft)
- - Laser Pointer (Nikon N) : Coaxial Red Light
- Communication
- - Communication ports : 1 x serial (RS-232C)
- WIRELESS COMMUNICATIONS
- - Bluetooth : Integrated
- General specifications
- - Level vials
- - Sensitivity of Circular level vial : 10‘/2 mm
- Optical plummet
- - Image :Erect
- - Magnification : 3X
- - Field of view : 5°
- - Focusing range : 0.5 m (1.6 ft) to ∞
- Display
- - NIKON N2 2“ : Both sides, backlit, graphic LCD (128 × 64 pixel)
- - NIKON N5 5“ : Single side, backlit, graphic LCD (128 × 64 pixel)
- - Point memory : 50,000 records
- - Dimensions (W x D x H) :168 mm x 173 mm x 335 mm (6.6 in x 6.8 in x 13.1 in)
- Weight (approx.)
- - Main unit (without battery) : 4.9 kg (10.8 lb)
- - Battery : 0.1 kg (0.2 lb)
- - Battery charger : 0.05 kg (0.1 lb)
- - Carrying case : 2.5 kg (5.5 lb)
- Power
- - Clip-on Li-on battery : x1 incl.
- - Operating time9 (per battery)
- - Continuous distance/angle measurement : approx. 4.5 hours
- - Distance/angle measurement every 30 seconds : approx. 14 hours
- - Continuous angle measurement : approx. 22 hours
- Charging time
- - Full charge : 6 hours
- - External power supply : Yes
Layanan purna jual
- Garansi servis dan kalibrasi 1 tahun
- Gratis training alat
