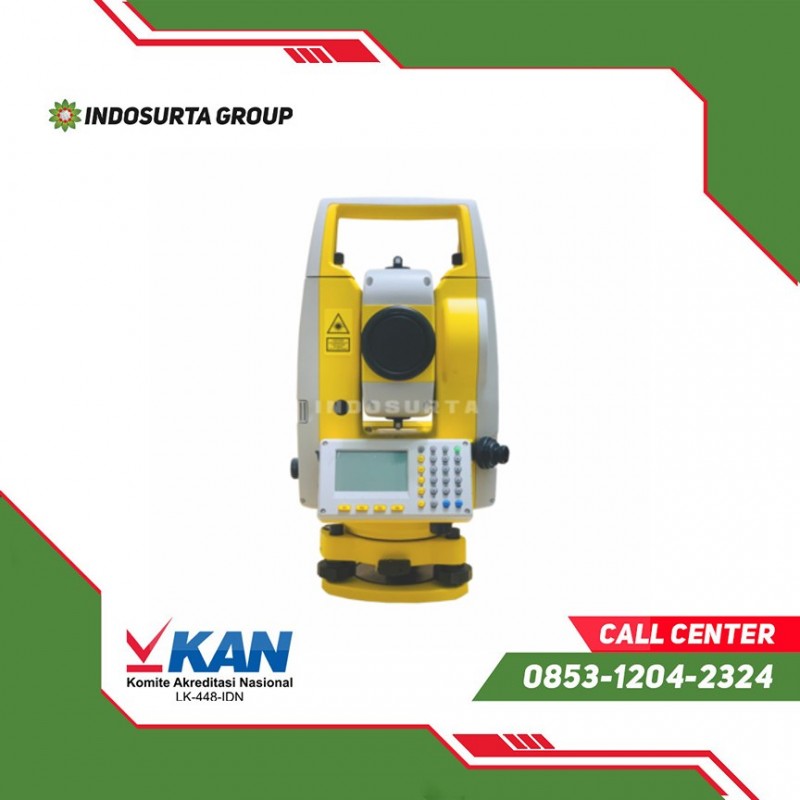

Telah hadir untuk anda alat survey Total Station South NTS-332R10 yang siap melengkapi pekerjaan survei pemetaan anda, karena alat ini memiliki ketelitian 2 detik yang dapat mengukur dengan baik dan juga akurat.
Kemudian alat ini dapat mengukur jarak 1 km tanpa menggunakan prisma (reflectorless), jarak 5 km dengan bantuan prisma, dan juga proteksi IP54. Dengan keunggulan tersebut sangat cocok sekali untuk para surveyor topografi karena mampu memberikan kinerja yang memuaskan.
Spesifikasi Total Station South NTS-332R10
Distance Measurement
- Max. Range
- Reflectorless: 1km
- Single prism: 5km
- Accuracy
- Reflectorless: 3+2 ppm
- Prism: 3mm+2ppm
- Sheet: 3+2ppm
- Measuring Time:
- 1.2s in fine
- 0.2s in tracking
- Atmospheric Correction: Manual Input, Auto Correction
- Prism Constant: Manual Input, Auto Correction
- Temperature Correction: Manual Input, Auto Correction
- Distance Reading:
- Max: 999999999.999m
- Min: 1mm
Angle Measurement
- Accuracy: 2"
- Method: Absolute, Continous
- Disk Diameter: 79mm
- Detection Method:
- V: Dual
- H: Dual
- Angle Reading: Min: 1"
Telescope
- Image: Erect
- Tube Length: 152 mm
- Effective Aperture: 45mm (EDM 47mm)
- Magnification: 30x
- Field of View: 1°30'
- Resolving Power: 3"
- Minimum Focus Distance: 1.5m
- Reticle Illumination: Not adjustable
Operation System
- Memory: 16000 points
Compensator
- System: Liquid, Dual Axis
- Working Range: ±6'
- Accuracy: 1"
Plummet
- Laser Plummet(Default):
- Accuracy: ±1.5mm @1.5m
- Laser Brightness: 5 level adjustable
- Wavelength: 635 nm
- Laser Class: Class 2
- Laser Power: 0.5mW
- Optical Plummet(Optional):
- Image: Erect
- Magnification: 3x
- Focusing Range: 0.5m ~ ∞
- Field of View: 5"
Keyboard and Display
- Keyboard: Alphanumeric 28 Keys
- Display: Black & White LCD
- Resolution: 160 x 96 dpi
- Position: Face 1, Face 2
Interface
- Data Interface: USB Flash Disk
Battery
- Type: Lithium
- Voltage: 7.4 V
- Operating Time: 8 Hours
Vial
- Plate Vial: 30"/2mm
- Circular Vial: 8'/2mm
General
- IP Rate: IP54
- Temperature Range: -20° ~ +50°C
- Dimension: 206 x 200 x 353 mm
- Weight: 6.0kg
Kelengkapan
- 1 Unit Total Station South NTS-332R10
- 1x Battery
- 1x Charger Battery
- 1x Prisma Single
- 1x Prisma Polygon
- 1x Pole stik
- 2x Alumunium Tripod
Layanan purna jual
- Garansi servis dan kalibrasi 1 tahun
- Gratis training alat
